Built-in extractor hood AD658XC1Stainless steel

Main Specifications

Type of hoods:

Wall decorative hood

Output air extraction (m3/h):

755

Width (cm):

90

Control panel

Type of control:

Continuous

Boost position:

Without

Lighting

Number of lights:

2

Light position:

Front

Type of bulb:

Led

Luminance totale en Lux:

198

Lighting power (W):

2,1

Performance

Number of speed positions:

4

Acoustic power level (recycling) (dBA):

57.1

Max recycling air extraction (m3/h):

675

Boost position output recirculating (m3/h):

750

Boost position air extraction (m3/h):

875

Minimum evacuation sound level (dBA):

57

Max evacuation sound level (dBA):

73.4

Filtering

Number of filters:

3

No-return airflow clap:

Yes

Accessories:

Characoal filter

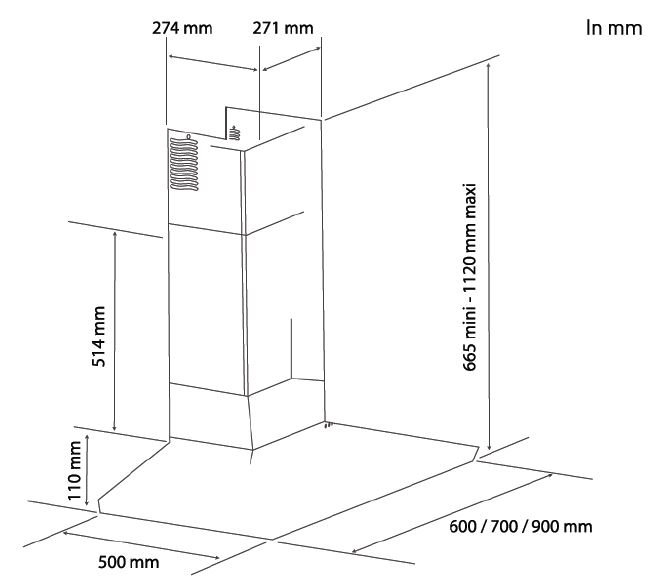

Dimensions

Height of product without chimmey (mm):

110

Dimensions of product HxWxD (mm) :

110X900X500

Height of chimmey min/max (mm):

660/1010

Built in dimensions HxWxD(mm):

110X900X500

Dimensions of the packed product HxWxD (mm):

600X940X380

Gross weight (kg):

15,84

Net weight (kg):

14.5

Connections

Voltage (V):

220-240

Frequency (Hz):

50/60

Current (A):

10

Connection rating (W):

374,2
